Lockable Static Earthing Reels

Static reels are used to bond two pieces of equipment
to allow static charge to be safely equalised. Static reels
are typically used when product is transferred from one
tank to another e.g. when pumping between a tanker
and storage tank or when fuelling aircraft.

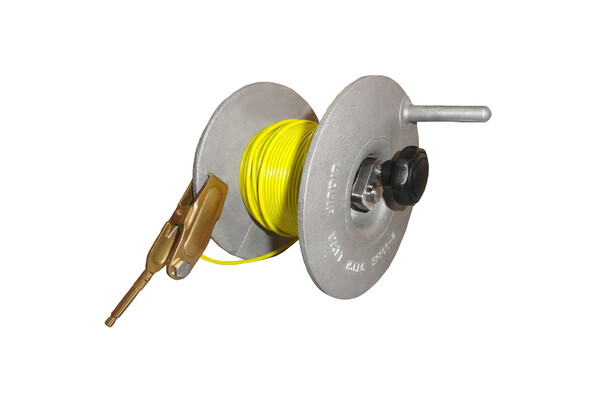

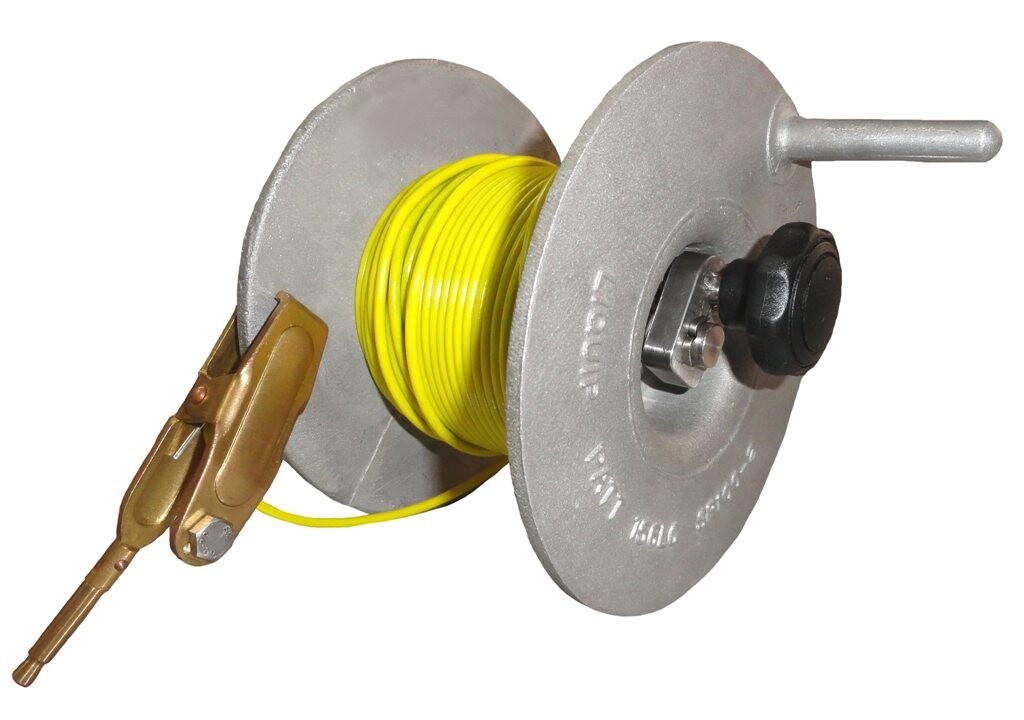

Liquip offers the LSR100, which has been developed to provide users with a safe and reliable static earthing reel that when locked won’t inadvertently unwind while a vehicle is moving.

Features & Benefits
  • Stainless steel components are used to ensure corrosion does not break continuity.
  • Simple to use locking mechanism prevents the static reel from unwinding due to vibration.
  • Reliable continuity is ensured through the use of a carbon brush on a stainless steel shaft.
  • Manual operation as spring-rewind types have caused accidents when inadvertently released.
  • Comes supplied with 30m of yellow cable for increased visibility at night.
  • Primary continuity is by  a carbon brush bearing on the stainless steel shaft.
  • Secondary patyhs are through the solid aluminium body to the shaft and also by spring loaded stainless steel washers to the end face.
  • Dust seals protect the assembly internals and graphite grease ensures easy rotation without electrical resistance, and long life.
  • standard wire 2mm dia. Other types readily available.
Technical Information
  • Nominal reel resistance is 5 ohms
  • Meets AS 2809:2 – Maximum end-to-end resistance of 10 ohms.
  • Carbon brush runs in sealed section to eliminate dirt and corrosion.
  • Shaft has grease reservoir for all-of-life lubrication.
Ordering Information

LSR100: Lockable static reel complete with 30m cable
and bonding clip.

Associated Equipment

SR200-3 – Optional cable guide for LSR100
7158 – Optional spacer for LSR100.
