Aircraft Nozzle

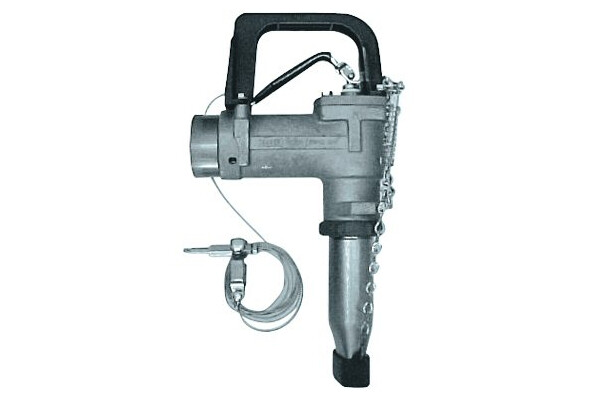

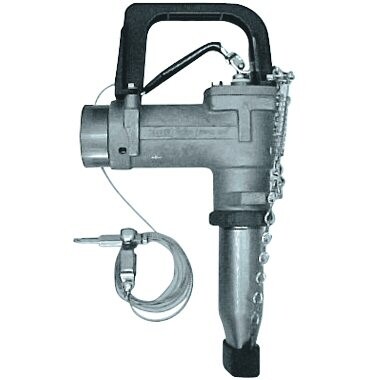

295SA-0135 - Overwing Nozzle

Liquip are proud to offer OPWs range of 295 series overwing aircraft refuelling nozzles.

Features & Benefits
  • Lightweight and durable aluminium design.
  • Dual poppets to allow for an easy to open nozzle against high inlet presures.
  • Vinyl-coated lever.
  • Colour-coded composite lever gaurd to distinguish between AVGAS and Jet A1.
  • Right angle design which provides larger lever area for better grip and easier control.
  • 100 mesh strainer to prevent foreign matter from entering fuel tank (easy to remove and clean).
  • Dust cap keeps spout free from dirt and stop fuel dirappage when connected.
  • Adjustable dash pot which premits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum afterflow.
  • Built in swivel to eliminate twisting and kinking of the hose.
  • NPT female threads at inlet end - accepts all 1 1/2" male connections.
  • Grounding wire assembly included on all aviation nozzles.
Technical Information

Design working pressure
50 PSI (3.45 bar) maximum pressure.

Materials
Body: Cast aluminium
Main stem: Stainless steel
Stem seal: Buna-N O-ring
Disc: Viton
Spout: Aluminium
