Hosebun Hose Hangers

Hosebun Hose Hanger

World leading polyurethane saddle designed to suspend hoses and prevent damage.

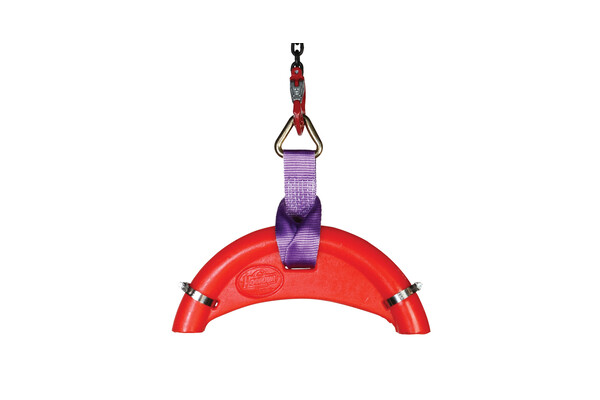

Hosebun is a patented polyurethane hose saddle designed to properly suspend an industrial hose, keeping it out of harms way and making it easier to perform its intended operation.

Any of Hosebun Hose Hangers are available through Liquip Victoria. We are an Australian distributor of Hosebuns range of products.



Features & Benefits

Benefits of using the Hosebun

> Guarantees continued delivery or suction of material conveyed in the hose
> Polyurethane construction is hard wearing and tough, offering excellent longevity
> Unlike metal hose hangers, Hosebun’s polyurethane saddle lessons impact damage when coming into contact with painted surfaces
> Available in a larger range of sizes to support hoses in various sizes from 25 mm through to 100 mm external diametre
> Can be used with an automatic hose retriever
> UV resistant nylon sling for use in external conditions and harsh weather environment
> Easy to use and set up
> Increases the life span of the hose

Designated uses

Suited to various industrial and commercial applications including:
> Petrochemical
> Oil and gas drilling applications

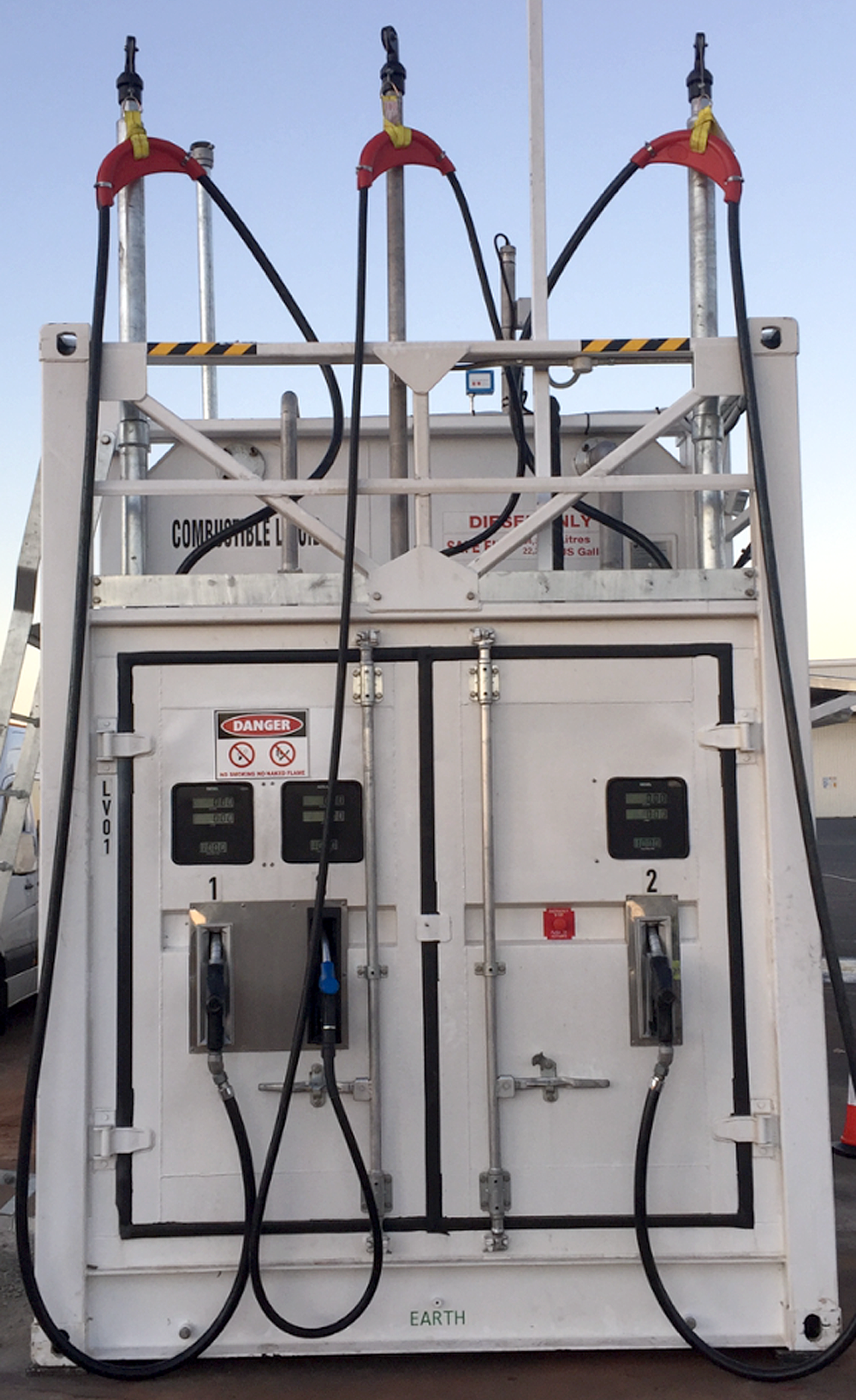

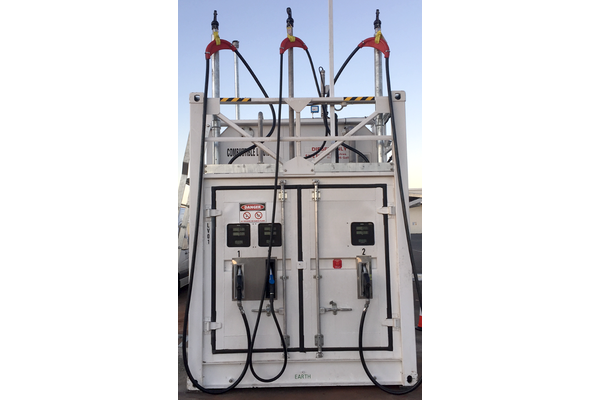

> Hi-hose refuelling stations (Self Bunded Tanks)
> Military & aircraft refuelling depots
> Overland/offshore shipping & transportation settings

Technical Information

Standard Hosebun size range

Hosebun 100
TO FIT HOSE SIZE OD: 25mm (1 inch)
PART NUMBER: LVHB100EB

Hosebun 125
TO FIT HOSE SIZE OD: 31mm (1-1/4 inch)
PART NUMBER: LVHB125EB

Hosebun 150
TO FIT HOSE SIZE OD:38mm (1-1/2 inch)
PART NUMBER: LVHB150EB

Hosebun 200
TO FIT HOSE SIZE OD: 50mm (2 inch)
PART NUMBER: LVHB200EB

Hosebun 300
TO FIT HOSE SIZE OD: 76mm (3 inch)
PART NUMBER: LVHB300D

Hosebun 400
TO FIT HOSE SIZE OD: 102mm (4 inch)
PART NUMBER: LVHB400D

Download the 'data sheet' from the resources tab for specific product technical details, ratings and certifications. Other sizes availble on request through Liquip Victoria.

Ordering Information

Hosebun 100
PART NUMBER: LVHB100EB

Hosebun 125
PART NUMBER: LVHB125EB

Hosebun 150
PART NUMBER: LVHB150EB

Hosebun 200
PART NUMBER: LVHB200EB

Hosebun 300
PART NUMBER: LVHB300D

Hosebun 400
PART NUMBER: LVHB400D

Other sizes availble on request through Liquip Victoria. Download the 'data sheet' from the resources tab for specific product technical details, ratings and certifications.

Please contact the sales team at Liquip Victoria for all ordering and extra product information.

Associated Equipment

Please call you state based Liquip Victoria sales presentative for advice on associated equipment available such as hoses, hose swivels, nozzles and tanks masts related to Self Bunded Tank fit outs and bowser installations.
